STEP DISPLACEMENT OUTLET Q-SR / Q-SL

For air distribution in assembly rooms with banked seating. Air supply from step front; linear and circular shape.

FEATURES

  • For rooms with steps and raised floor plenums
  • Air outlet built into step front
  • Low-turbulence jet dispersion near Floor
  • Low sound power Level

DATA

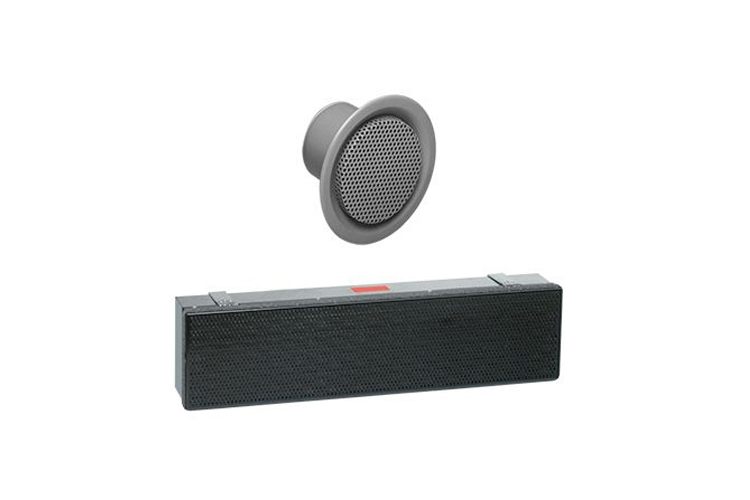

Type Q-SR Round frontal plate
Volume Flow Rate Range: DN 80: ≤ 10 l/s [35 m³/h]
DN 100: ≤ 16.5 l/s [60 m³/h]
Sound Power Level: ≤ 27  dB(A) ref. 10-12 W
Depth: 80mm
Type Q-SL Rectangular frontal plate
Volume Flow Rate Range: ≤ 21 l/(s • m) [75 m³/(h • m)]
Sound Power Level: ≤ 15  dB(A) ref. 10-12 W
Length: Variable
Standard Height: 120mm
Depth: 75mm
