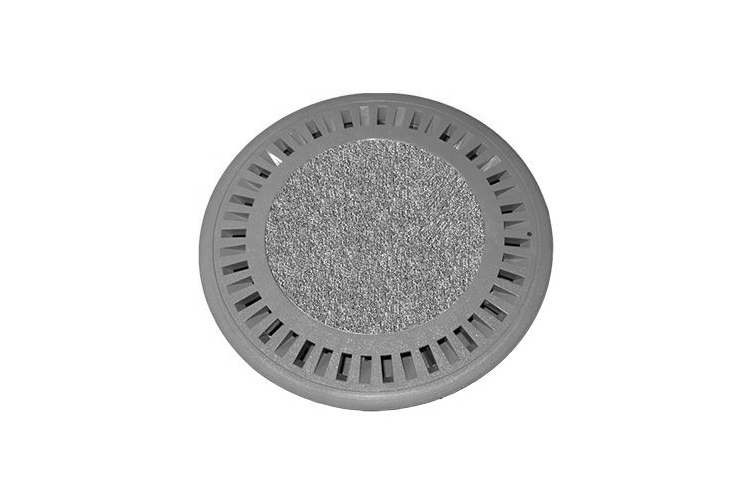

FLOOR DISPLACEMENT OUTLET Q-B-DN 215
Installation in floor plenums; air supply from below, to generate low-turbulence, radial horizontal flow for displacement ventilation.
FEATURES
- Radial, horizontal jet Dispersion
- For low floor plenums, installation with floor insert in floor orifice
- Twist element and clamp insert made of plastic
- For air connection to the 'pressurized plenum' system
- Floor insert with perforated throttle disk
- Available on request with central recess to accommodate floor covering
DATA
| Volume Flow Rate Range: | 5.5 – 14 l/s [20 –50 m³/h] |
|---|---|
| Nominal Size: | DN 215 |
