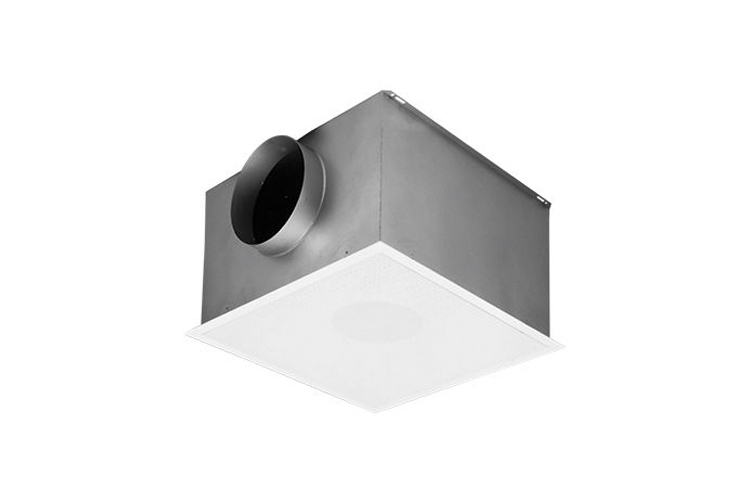

CEILING DISPLACEMENT OUTLET Q-DN / Q-DV

Installation flush with false ceiling or downstanding below the room ceiling, non-adjustable or adjustable.

FEATURES

  • For low-turbulence air supply from ceiling
  • Discharge height 2.5 – 3.5 m
  • Vertical downflow supply air jet
  • Adjustable type also suitable for heating purposes; adjustment either by hand, or by thermostatic device or servomotor
  • Flush with ceiling or downstanding
  • Minimum horizontal distance to workplace 1.5 m
  • Connection to supply air duct at side or from above

DATA

Type Q-DN: Non-Adjustble
Volume Flow Rate Range: 47 - 140 l/s [170 - 500 m³/h]
Discharge Velocity: 0.15 – 0.45 m/s
Sizes: 625mm x 625mm (square)
625mm x 1250mm (rectangular)
Type Q-DV: Non-Adjustble
Volume Flow Rate Range: 94 - 140 l/s [340 - 500 m³/h]
Discharge Velocity: 0.30 - 0.45 m/s
Size: 625mm x 625mm
