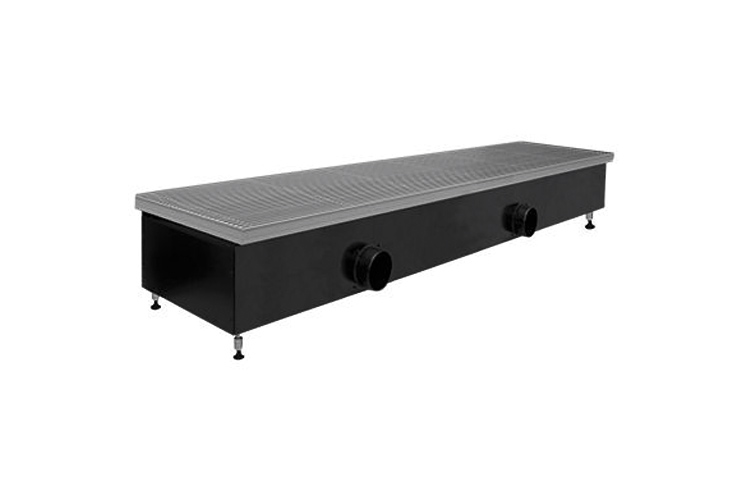

RECTANGULAR FLOOR DISPLACEMENT OUTLET Q-BR

The rectangular floor displacement outlet ist designed to deliver supply air to commercial rooms with raised floors or floor plenums.

FEATURES

  • Combined mixing/displacement flow or hybrid flow as described in German VDI 3804 Guideline
  • For mounting in raised Floors
  • Volume flow rate up to 55 l/(s·m) [200 m³/(h·m)], one-way or two-way discharge
  • Draught-free indoor air flow with very low air velocities in the occupied Zone
  • Large supply air coverage (up to 6 m)

DATA

Supply Volume Flow Rate Range: up to 55 l/(s·m) [200 m³/(h·m)]
Temperature Difference
Supply Air to Indoor Air:
-1 to -6 K
Unit Length: 800mm, 1000mm, 1200mm (standard), 1450mm, 1700mm, 1900mm
Unit Depth: 140mm, 180mm, 260mm (standard), 340mm
Unit Height: 190mm (standard) 130mm (supply air connection at the bottom)
