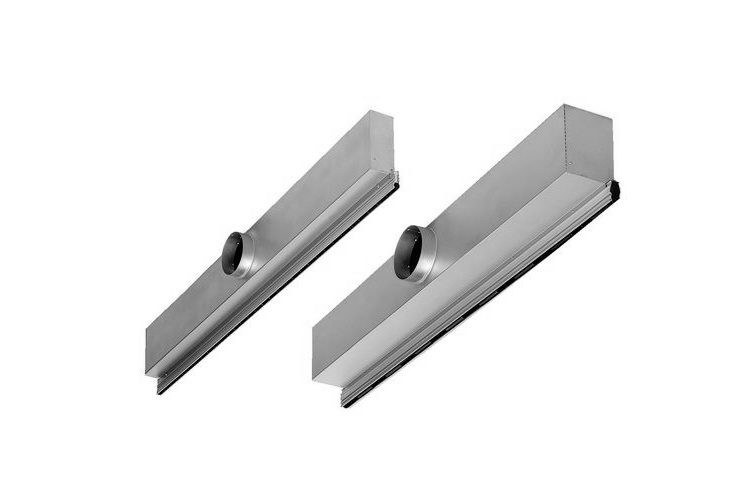

ADJUSTABLE INDUCTION OUTLET IN-V

For installation flush with ceiling and where manual adjustment of discharge direction is required.

FEATURES

  • Stable single jets with alternate or one-sided discharge, for all ceilings
  • Discharge direction adjustment from horizontal to nearly vertical
  • Type IN-V2: element width: 28 mm per row; also available in 2, 3 or 4 rows
  • Tpye IN-V3: element width: 15 mm; 1 row
  • With connection box and circular connection spigot
  • Also available as return air inlet

DATA

Volume Flow Rate Range: 2.8 – 110 l/(s•m) [10 – 400 m³/(h•m)]
Element Width: 15 or 28 mm
Lengths 1050mm, 1200mm, 1350mm and 1500mm
Discharge Height: 2.5m – 5m

BROCHURE DOWNLOADS
