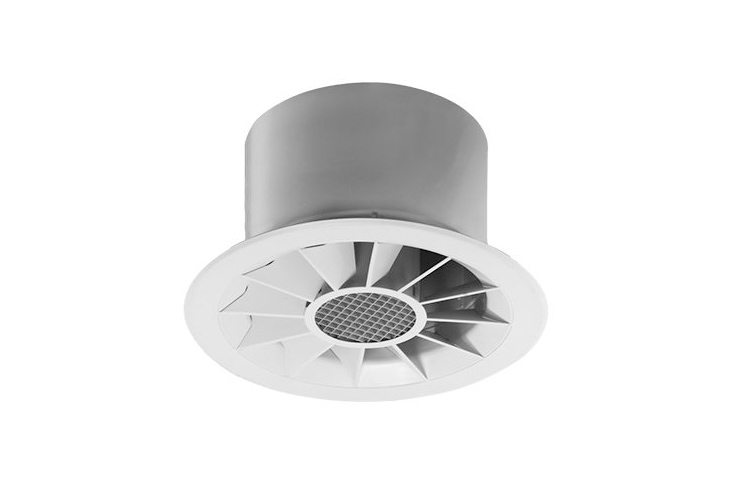

ADJUSTABLE RADIAL OUTLET WITH CORE TUBE RA-V2

For installation flush with ceiling or freely suspended in industrial or commercial applications; also suitable for gread room heights. Continuous air jet adjustment for cooling and heating.

FEATURES

  • Discharge direction adjustable from horizontal to vertical (downwards)
  • Adjustment of discharge direction via thermostatic control unit, electric actuator, or manual adjusting device
  • With circular or square face
  • Radial jet spread in cooling mode
  • Shorter heating-up time due to vertical discharge in heating mode
  • Connection directly to circular ducts to EN 1506 or via connection box

DATA

Volume Flow Rate Range: 111 – 4 444 l/s [400 – 16 000 m³/h]
Nominal Sizes: DN 250 – DN 900
Discharge Height: 2.8m – 15m
