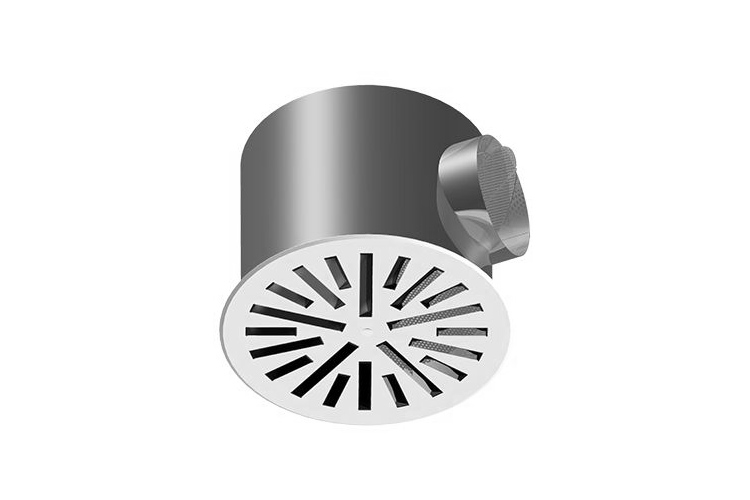

RADIAL SLOT OUTLET RL-C

For installation flush with ceiling or downstanding.

FEATURES

  • Discharge direction manually adjustable from horizontal to downward incline
  • Circular air outlet element with circular connection box for exposed mounting or with cubic connection box for installation flush with ceiling
  • With circular bar array
  • Radial jet dispersion
  • Individual bars can be closed thus enabling asymmetric jet dispersion
  • Easy screw fastening from below
  • Also available as return air inlet

DATA

Volume Flow Rate Range: 22 – 320 l/s [80 – 1 150 m³/h]
Nominal Sizes: 375, 470, 600 and 750
Discharge Height: 2.5m – 4.5m
