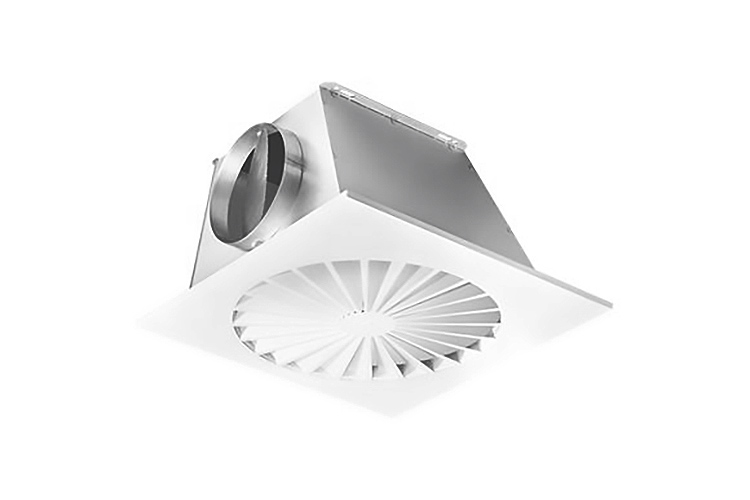

RADIAL OUTLET RA-N3

For installation flush with ceiling or free-hanging.

FEATURES

  • Radial, horizontal jet dispersion; therefore high level of thermal comfort
  • Available in 2 sizes, with square or circular face
  • High volume flow rate per size
  • Low height
  • Connection to flexible or spiral seam duct via reducer or connection box
  • Easy screw fastening from below
  • Can also be used as a return air inlet

DATA

Volume Flow Rate Range: 26 – 400 l/s [95 – 1 440 m³/h]
Nominal Sizes: DN 355 and DN 500
Discharge Height: 2.4m - 4.5m
Temperature differential -12 K to + 5 K (+ 10 K up to 3 m ceiling height)
