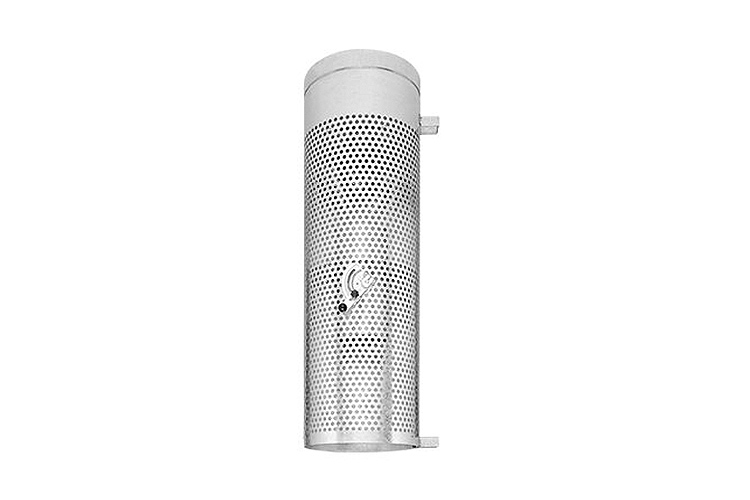

CIRCULAR DISPLACEMENT OUTLET VA-ZD

Suitable for rooms where the supply air is discharged at points either at approx. 3 m height or directly above the floor.

FEATURES

  • Low-turbulence displacement flow
  • Placement at approx. 3 m height or on the floor, free standing in room or in front of a pillar or wall
  • Radial discharge direction
  • Stepless adjustment of discharge direction from approximately horizontal to vertical downflow
  • Adjustment by hand, servomotor or automatic thermal control unit
  • Well suited for cooling and heating
  • Connection to duct to EN 1506

DATA

Volume Flow Rate Range: ≤ 2 800 l/s [10 000 m³/h]
Nominal Sizes: DN 250 - DN 630
Primary penetration Depth: up to 14m
Maximum Supply Air Penetration Depth: up to 20m
