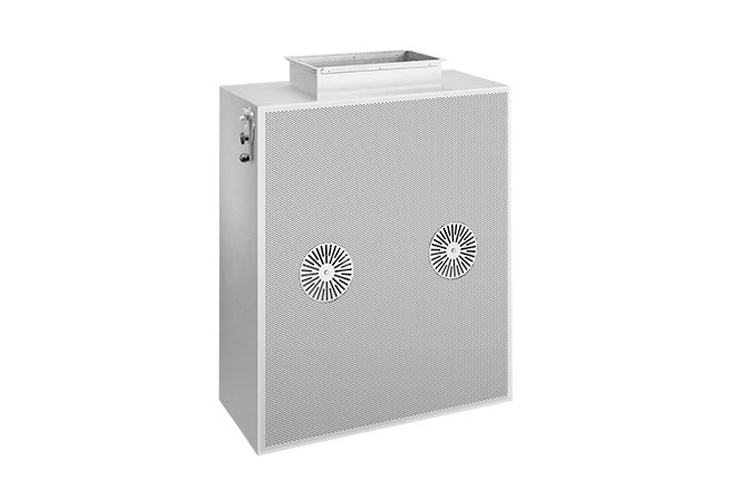

RECTANGULAR DISPLACEMENT OUTLET VA-RV / VA-RN

Suitable for rooms with high specific heat loads or light pollutants.

FEATURES

  • Low-turbulence displacement flow
  • Installation on or directly above the floor
  • Adjustable (VA-RV) or non-adjustable (VA-RN)
  • Horizontal discharge; with adjustable type (VA-RV), discharge directed to floor when heating
  • Flat shape
  • Rectangular connection spigot positioned on top

DATA

Volume Flow Rate Range: ≤ 700 l/(s•m) [2 500 m³/(h•m)]
Length: 1000mm - 2500mm
Depth: 350mm
Height: 765mm and 1150mm
Coverage Zone: up to 20m
