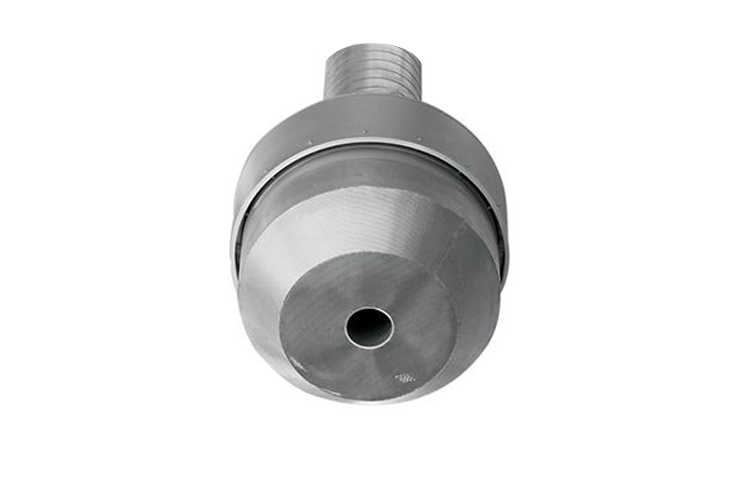

CONICAL DISPLACEMENT OUTLET VA-K

For halls where supply air must be discharged from a great height at low turbulence; suitable for cooling and heating.

FEATURES

  • Low-turbulence displacement flow, especially suited for aircraft painting Hangars
  • Air discharge direction adjustable to internal loads
  • Built-in electric actuator for adjustment of jet penetration depth
  • Low pressure drop
  • Temperature difference between supply air and return air up to –5 K in cooling mode and +8 K in heating mode
  • Smooth operation in heating-up operation up to Δθ = +10 K

DATA

Volume Flow Rate Range: 280 – 2 800 l/s [1 000 – 10 000 m³/h]
Size: DN 630 and DN 800
Coverage Zone: 6m – 30m
