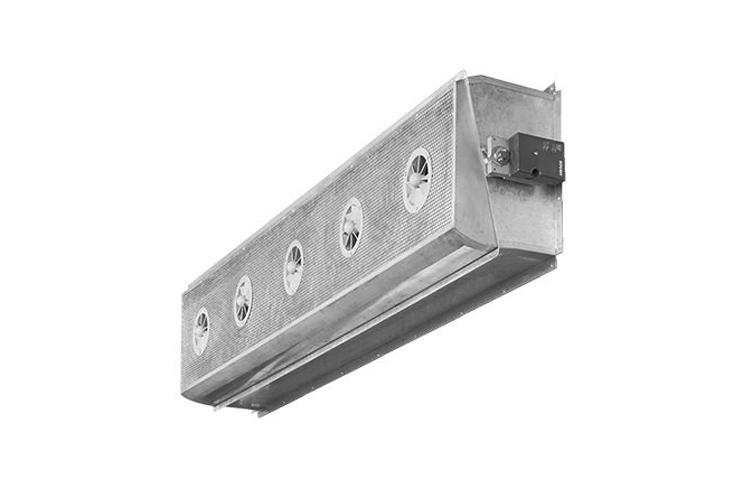

SWIVEL DISPLACEMENT OUTLET VA-S

Suitable for factories where the supply air ducts must be placed with the air outlets at the walls and the supply air is to be discharged at low turbulence and large penetration depth into the occupied zone; suitable for cooling and heating.

FEATURES

  • Low-turbulence displacement flow
  • Placement above the occupied zone, in front of walls or galleries
  • Discharge height 3 to 5 m
  • Discharge direction adjustable from +10° to -35° to horizontal, manually or with servomotor
  • Placement at side of main supply air duct, singly or several in a row

DATA

Volume Flow Rate Range: 220 – 500 l/(s•m), [800 – 1 800 m³/(h•m)]
Nominal Lengths: 1200mm - 2400mm
Max Supply Air Penetration Depth: up to 20m
