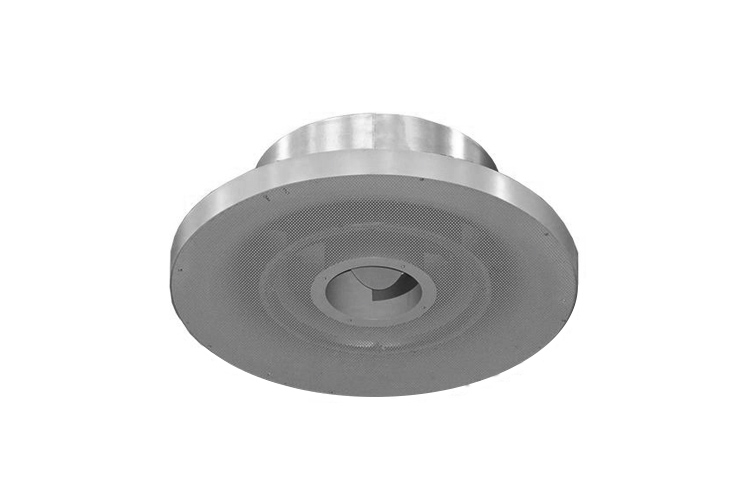

RADIAL DISPLACEMENT OUTLET VA-PV

For factories where the supply air must be discharged downwards from a height of 4 to 10 m at low turbulence.

FEATURES

  • Low-turbulence displacement flow
  • Placement above the occupied zone at a height of 4 to 10 m, freely suspended
  • Jet direction more or less spread, vertical downflow
  • When heating, higher jet momentum downwards by opening of core tube
  • Well suited for cooling and heating
  • Adjustment
    • via thermostatic control unit; advantages: no wiring, no auxiliary energy required
    • with electric actuator
    • with manual device
  • Connection to circular duct to EN 1506

DATA

Volume Flow Rate Range: 280 – 2 200 l/s [1 000 – 8 000 m³/h]
Nominal Sizes: DN 315 – DN 710
Max Supply Air Penetration Depth: ≤ 5 m
