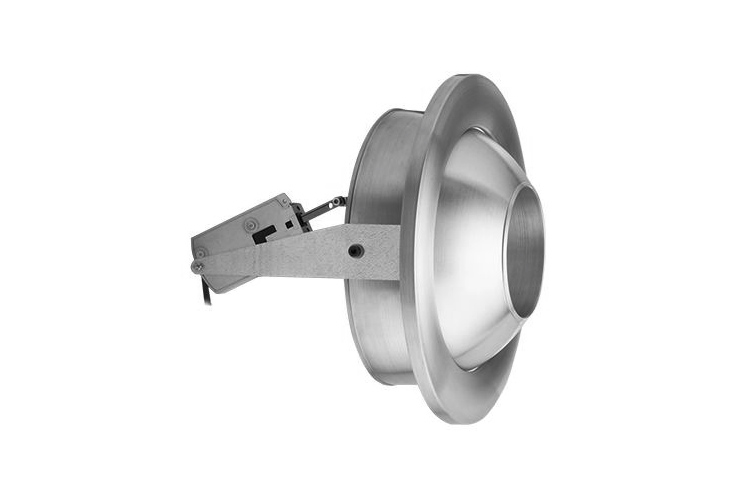

SWIVEL JET NOZZLE DW-V2

For installation on walls, pillars or galleries, where adjustment of discharge direction with servomotor or by hand is required.

FEATURES

  • Circular free jet
  • Discharge direction adjustable through ± 30° around the swivel axis
  • Adjustment options: manually, by electric actuator or, without auxiliary energy, by maintenance-free thermostatic control unit
  • The thermostatic control unit allows for resetting; the swivel range can be altered in increments of 5°, up to 20˚ in total.
  • Position of swivel axis also adjustable in the vertical plane, enabling to alter the discharge direction sideways
  • Low sound power level
  • Low pressure drop
  • Direct connection to supply air duct or pressurized chamber, or connection with push-in end for spiral seam duct and with slip-on end for shaped parts

DATA

Volume Flow Rate Range: 11 – 589 l/s [40 – 2 120 m³/h]
Nominal Sizes: DN 60 – DN 250
Throw: 3m – 50m
Discharge Height: 2.5m – 10m
