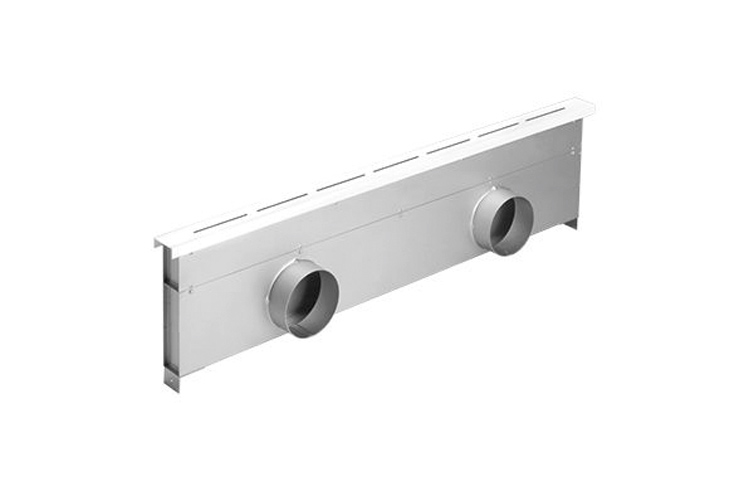

WINDOW AIR CURTAIN UNIT FSG

Installation in window sills for upward-directed air curtain to compensate for heat transmission by the window when cooling and heating.

FEATURES

  • Linear air curtain
  • Installation in floor or window sill, along the facade
  • Max. distance to glass pane: 200 mm
  • Small space required (width 55 mm, height 260 to 310 mm)
  • With connection box for flexible duct Connection

DATA

Volume Flow Rate Range: 8 – 25 l/(s•m) [30 - 90 m³/(h•m)] *
Slot Width: 3mm – 10 mm
Standard Lengths: 1m, 1.2m, 1.4m and 1.6m
Penetration Height: 2m - 10m
