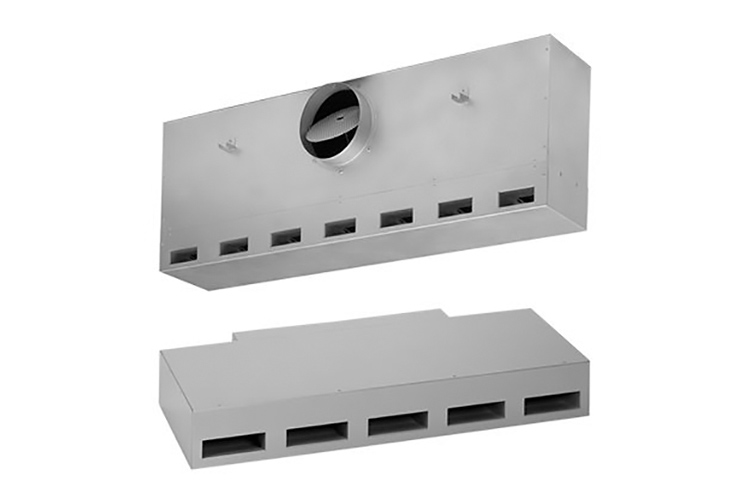

LINEAR WHIRL OUTLET WL
Installation in the upper area of sidewalls, e.g. in hotel rooms, for spread-out supply air jets and draught-free air distribution.
FEATURES
- Linear free jet consisting of 5 to 7 single jets, depending on type
- Discharge direction nearly horizontal
- Low sound power level
- 3 sizes for different penetration depths
- Also available with low height for low ceiling plenums
- Connection box for flexible duct connection, or direct connection to main air duct
DATA
| Volume Flow Rate Range: | 28 – 300 l/s [100 – 1 100 m³/h] |
|---|---|
| Nominal Sizes: | 30, 45 and 65 mm (discharge chamber height) |
| Standard Lengths: | 1000mm - 1100mm |
| Penetration Depth: | 4 – 16 m |
| Discharge Height: | 2.2m – 4m |
