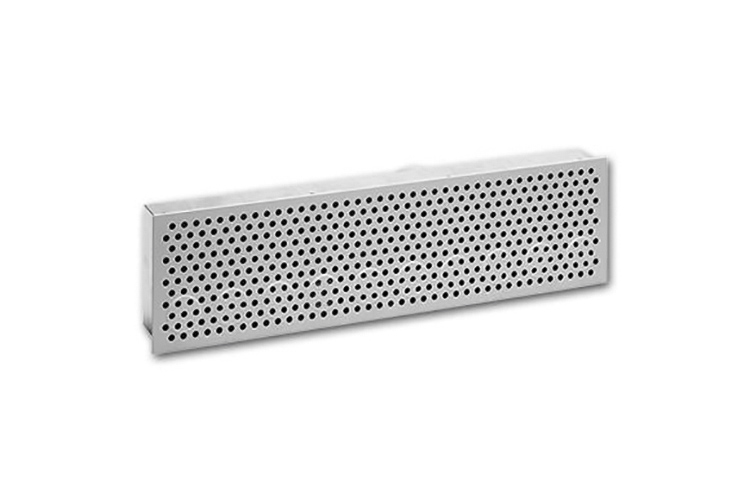

COMBINED MULTIPLEX OUTLET FA-VT-K

For installation in corridor walls of offices, meeting rooms, etc., to discharge supply air in thin single jets from the lower outlet segment into the occupied zone and to remove return air through the upper outlet segment.

FEATURES

  • Combined supply air and return air outlet
  • Generation of jet bundles with thin, free, single supply air jets
  • Jet bundle elements manually rotatable through 360°
  • Pronounced spread of supply air jets
  • Rapid decrease in jet velocity and temperature difference
  • Jet bundle elements for supply air and return air respectively arranged in one row
  • Return air segment also without jet bundle elements; return air intake via perforated faceplate
  • Connection box with supply air and return air spigots for flexible duct connection

DATA

Volume Flow Rate Range: ≤ 40 l/(s•m) [145 m³/(h•m)] for supply air and return air respectively
Nominal Lengths: 600mm, 800mm and 1000mm
Air Outlet Height: 260mm
Discharge Height: 2.5m – 4m
