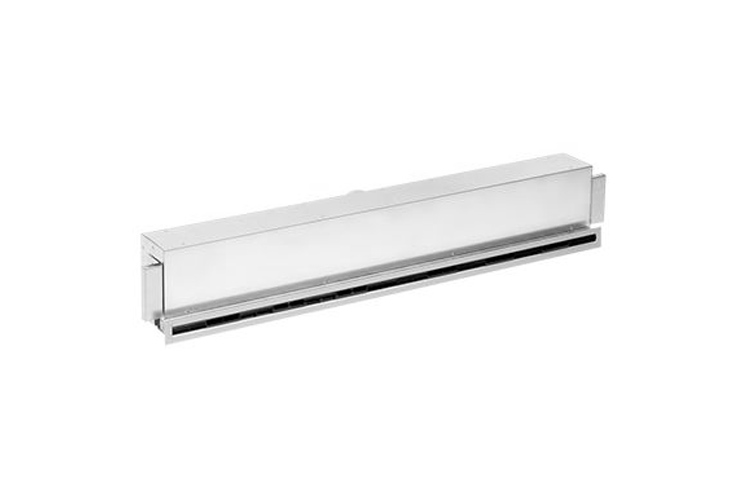

WALL SLOT DIFFUSER WSD

For installation in gypsum plasterboard walls.

FEATURES

  • With 1 or 2 rows for supply air or return air or both combined
  • Slot element easy to remove thanks to push-in connection; thus cleanable as per VDI 6022
  • Connection box to be installed inside or behind gypsum plasterboard walls; volume flow damper adjustable from room (optional)
  • High level of thermal comfort: max. cooling capacity up to 120 W/m²
  • High insertion loss with abrasion-resistant acoustic lining of class A2 as per DIN 4102-1 (optional); this obviates the need for crosstalk silencers

DATA

Volume Flow Rate Range: up to 66.5 l/s [240 m³/h] per metre of diffuser length
Nominal Lengths: 525mm, 1050mm and 1125mm
Discharge Height: 2.4m - 3.5m
