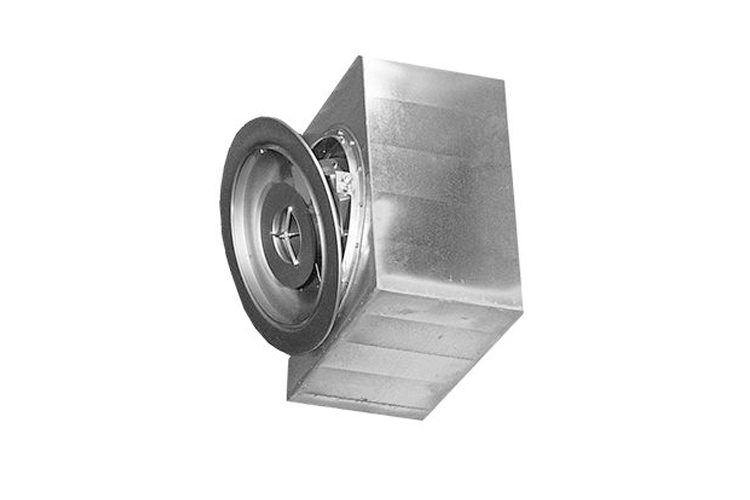

SWIVEL JET OUTLET SW

For mounting on walls, pillars or galleries, where large penetration depths and high volume flow rates per air outlet are required.

FEATURES

  • Circular, high-turbulence free jet
  • Discharge direction adjustable in a plane by ± 20° to the air outlet axis, manually or with servomotor
  • Penetration depth adjustable by opening or closing the core tube
  • Optional ring insert for very large penetration depths
  • Connection to side of main supply air duct or with connection box

DATA

Volume Flow Rate Range: 110 – 2 800 l/s [400 – 10 000 m³/h]
Nominal Sizes: DN 315, DN 400, DN 600 and DN 710
Penetration Depth: up to 30m
Discharge Height: 4m – 6m
