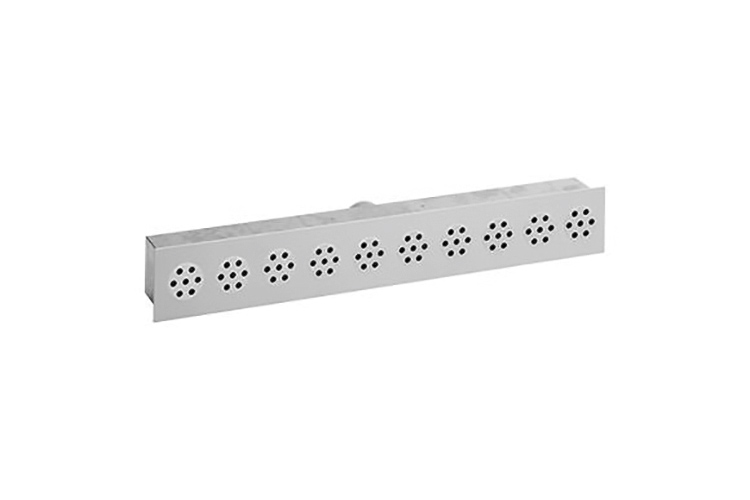

MULTIPLEX OUTLET FA-VT
For installation in corridor walls of offices, meeting rooms, etc., to provide the occupied zone with supply air spread out into thin single jets.
FEATURES
- Bundles of thin, free single jets
- Jet bundle elements manually rotatable through 360°
- Pronounced spread of supply air jets
- Rapid decrease in jet velocity and temperature difference
- Single-row or double-row arrangement of jet bundle elements
- With connection box for flexible duct connection
- Also usable as return air inlet
DATA
| Volume Flow Rate Range: | ≤ 40 l/(s•m) [145 m³/(h•m)] –1-row design ≤ 50 l/(s•m) [185 m³/(h•m)] – 2-row design |
|---|---|
| Nominal Lengths: | 600mm, 800mm and 1000mm |
| Air Outlet Height: | 140mm |
| Discharge Height: | 2.5m – 4m |
